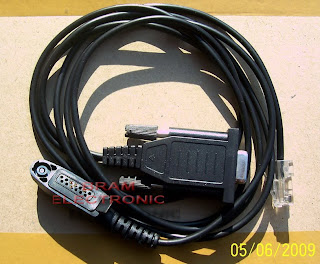

Programming Cable Motorola for GM338 and GP338Plus



Programming cable for Motorola two way radio
A. Mobile series:
- GM338
- GM398
- GM328
- GM300
- M120
- Maxtrac
- Radius

B. Portable Series:
- GP338Plus
- GP328Plus

25 July 2009

PIC18F2525-I/SP Microchip MCU

28-Pin Enhanced Flash Microcontrollers
with 10-Bit A/D and nanoWatt Technology
--------------------------------------------

Power Managed Modes:
• Run: CPU on, peripherals on
• Idle: CPU off, peripherals on
• Sleep: CPU off, peripherals off
• Idle mode currents down to 2.5 ¼A typical
• Sleep mode current down to 100 nA typical
• Timer1 Oscillator: 1.8 ¼A, 32 kHz, 2V
• Watchdog Timer: 1.4 ¼A, 2V typical
• Two-Speed Oscillator Start-up

Flexible Oscillator Structure:
• Four Crystal modes, up to 40 MHz
• 4x Phase Lock Loop (PLL) – available for crystal and internal oscillators)
• Two External RC modes, up to 4 MHz
• Two External Clock modes, up to 40 MHz
• Internal oscillator block:
- 8 user selectable frequencies, from 31 kHz to 8 MHz
- Provides a complete range of clock speeds from 31 kHz to 32 MHz when used with PLL
- User tunable to compensate for frequency drift
• Secondary oscillator using Timer1 @ 32 kHz
• Fail-Safe Clock Monitor
- Allows for safe shutdown if peripheral clock stops

Peripheral Highlights:
• High-current sink/source 25 mA/25 mA
• Three programmable external interrupts
• Four input change interrupts
• Up to 2 Capture/Compare/PWM (CCP) modules, one with Auto-Shutdown (28-pin devices)
• Enhanced Capture/Compare/PWM (ECCP) module (40/44-pin devices only):
- One, two or four PWM outputs
- Selectable polarity
- Programmable dead time
- Auto-Shutdown and Auto-Restart

Peripheral Highlights (Continued):
• Master Synchronous Serial Port (MSSP) module supporting 3-wire SPI™ (all 4 modes) and I2C™
Master and Slave modes
• Enhanced Addressable USART module:
- Supports RS-485, RS-232 and LIN 1.2
- RS-232 operation using internal oscillator block (no external crystal required)
- Auto-Wake-up on Start bit
- Auto-Baud Detect
• 10-bit, up to 13-channel Analog-to-Digital Converter module (A/D):
- Auto-acquisition capability
- Conversion available during Sleep
• Dual analog comparators with input multiplexing
• Programmable 16-level High/Low-Voltage
Detection (HLVD) module:
- Supports interrupt on High/Low-Voltage Detection
Special Microcontroller Features:
• C compiler optimized architecture:
- Optional extended instruction set designed to
optimize re-entrant code
• 100,000 erase/write cycle Enhanced Flash
program memory typical
• 1,000,000 erase/write cycle Data EEPROM
memory typical
• Flash/Data EEPROM Retention: 100 years typical
• Self-programmable under software control
• Priority levels for interrupts
• 8 x 8 Single Cycle Hardware Multiplier
• Extended Watchdog Timer (WDT):
- Programmable period from 4 ms to 131s
• Single-supply 5V In-Circuit Serial
Programming™ (ICSP™) via two pins
• In-Circuit Debug (ICD) via two pins
• Wide operating voltage range: 2.0V to 5.5V
• Programmable Brown-out Reset (BOR) with
software enable option.

20 July 2009

3B20 Module (AC Strain Gage, Torque Transducer Input)




FEATURES
Interfaces, amplifies, & filters signals from 4-arm AC bridge
transducer signals ranging between 1.5mV rms & 150mV
rms.
Module provides an AC excitation voltage of 2V rms to 10V
rms at frequencies between 1kHz & 10kHz..
Module provides simultaneous precision voltage and
current outputs.
Module circuitry can withstand 130v rms at its current
output terminals without damage.
All 3B20 series modules are mix-and-match and Hot
Swappable

APPLICATIONS
Industrial signal conditioning
Industrial signal isolation
Industrial signal filtering

PRODUCT OVERVIEW
The 3B Series of Signal Conditioning I/o Subsystems provide a
low-cost, versatile method of transferring analog transducer
signals to a data acquisition, monitoring or control system
without the inherent noise, non-linearity, drift and extraneous
voltages. The modules are designed to directly accept analog
signals from Thermocouples, RTD’s, AC and DC Strain Gages,
Torque Transducers, Frequency Transducers, LVDTs, millivolt
or process current signals. The modules amplify, isolate,
linearize and convert the transducer output signals to
standardized analog inputs for high-level analog I/O
subsystems. The 3B Series Subsystem consists of a 10” relay
rack with universal mounting backplane and a family of plug-in
(up to 16 per rack) input and output signal conditioning
modules.

Eight and four channel backplanes are also available. Each
backplane incorporates screw terminals for sensor inputs and
current outputs and a 26-pin connector for high-level singleended
voltage outputs to the user’s equipment.

The input modules feature complete signal conditioning
circuitry optimized for specific sensors or analog signals and
provide two simultaneous high-level analog outputs: 0 to +10V
(or +10V) and 4-20 mA (or 0-20 mA).

Output modules accept 0 to +10V (or +10V) single-ended
signals and provide an isolated 4-20 mA (or 0-20 mA) process
signal. All modules feature a universal pin-out and may be
readily hot-swapped under full power and interchanged without
disrupting field wiring.

The Analog Devices 3B Series Signal Conditioning Subsystem is
designed to easily handle signal conditioning problems in
measurement and control applications. Some typical uses are in
microcomputer-based data acquisition systems, programmable
controllers, analog recorders, dedicated control systems, and any
other applications where monitoring of temperature, pressure,
flow and analog signals are required. Since each input module
features two simultaneous outputs, the voltage output can be
used to provide an input to a microprocessor-based data
acquisition or control system while the current output can be
used for analog transmission, operator interface, or an analog
backup system.

Each input module is a single-channel signal conditioner which
plugs into a socket on the backplane and accepts its signal from
the input screw terminals. All input modules provide input
protection, amplification and filtering of the input signal,
accuracy of +0.1%, low drift of +1 uV/oC (low-level input
modules), and feature two high-level analog outputs that are
compatible with most process instrumentation. The isolated
input modules also provide +1500 V peak isolation.

The choice of a specific 3B module depends upon the type of
input signal. Input modules are available to accept millivolt, volt,
process current, thermocouple, RTD, AC and DC strain gage,
frequency and LVDT inputs. The voltage output of each module
is available from the system I/O connector while the current
output is available on the output screw terminals.




GENERAL DESCRIPTION
The 3B20 is a wideband single-channel signal-conditioning
module which interfaces 4-arm AC bridge transducer signals
ranging between 1.5mV rms and 150mV rms, providing
simultaneous precision voltage and current outputs. In addition,
the module provides an AC excitation voltage of 2V rms to 10V
rms at frequencies between 1kHz and 10kHz. The module
withstands 130V rms at its current output terminals without
damage thereby shielding computer-side circuitry from fieldside
over-voltage conditions. The 3B20 is a plug-in, mix-andmatch,
hot-swappable module and is easily field calibrated via
front-panel zero and span adjustments for both voltage and
current outputs.

3B Series Custom-Ranging Program – Externallyprogrammable
Model 3B20-00, enables the user to configure a
special input range, including tare weight suppression, by using
the optional plug-on AC1310 ranging card, which houses usersupplied
resistors to determine zero and span. To facilitate
selecting resistors, a Windows program, 3B-CUSTOM,
calculates resistor values based on the user-desired input/output
ranges.

The 3B20 input and AC bridge excitation output terminals are
protected for up to 130V rms. The excitation amplitude and
frequency can be specified with the Model 3B20 CUSTOM or
user configured with Model 3B20-00 and an optional plug-on
Model AC1310 ranging card. Both the voltage and current
outputs can be independently adjusted for a minimum of +1V
for the zero and 25% of the span range with front-panel useraccessible
potentiometers. In addition, phase shifts of up to
37.25o between excitation signal and the output signal from the
strain gauge or torque transducer can be compensated via frontpanel
screw terminal adjustments.

18 July 2009

3B32 Isolated Input Module


FEATURES
Interfaces, amplifies, & filters a process-current input.
Process-current input signals are measured by reading the
voltage across an external precision 100Ω resistor (supplied
with module).
Module provides simultaneous precision voltage and
current outputs.
Module circuitry can withstand 220v rms at the input screwterminals.
All 3B32 series modules are mix-and-match and Hot
Swappable.

APPLICATIONS
Industrial signal conditioning
Industrial signal isolation
Industrial signal filtering



PRODUCT OVERVIEW
The 3B Series of Signal Conditioning I/o Subsystems provide a
low-cost, versatile method of transferring analog transducer
signals to a data acquisition, monitoring or control system
without the inherent noise, non-linearity, drift and extraneous
voltages. The modules are designed to directly accept analog
signals from Thermocouples, RTD’s, AC and DC Strain Gages,
Torque Transducers, Frequency Transducers, LVDTs, millivolt
or process current signals. The modules amplify, isolate,
linearize and convert the transducer output signals to
standardized analog inputs for high-level analog I/O
subsystems. The 3B Series Subsystem consists of a 10” relay
rack with universal mounting backplane and a family of plug-in
(up to 16 per rack) input and output signal conditioning
modules.

Eight and four channel backplanes are also available. Each
backplane incorporates screw terminals for sensor inputs and
current outputs and a 26-pin connector for high-level singleended
voltage outputs to the user’s equipment.

The input modules feature complete signal conditioning
circuitry optimized for specific sensors or analog signals and
provide two simultaneous high-level analog outputs: 0 to +10V
(or +10V) and 4-20 mA (or 0-20 mA).

Output modules accept 0 to +10V (or +10V) single-ended
signals and provide an isolated 4-20 mA (or 0-20 mA) process
signal. All modules feature a universal pin-out and may be
readily hot-swapped under full power and interchanged without
disrupting field wiring.

The Analog Devices 3B Series Signal Conditioning Subsystem is
designed to easily handle signal conditioning problems in
measurement and control applications. Some typical uses are in
microcomputer-based data acquisition systems, programmable
controllers, analog recorders, dedicated control systems, and any
other applications where monitoring of temperature, pressure,
flow and analog signals are required. Since each input module
features two simultaneous outputs, the voltage output can be
used to provide an input to a microprocessor-based data
acquisition or control system while the current output can be
used for analog transmission, operator interface, or an analog
backup system.

Each input module is a single-channel signal conditioner which
plugs into a socket on the backplane and accepts its signal from
the input screw terminals. All input modules provide input
protection, amplification and filtering of the input signal,
accuracy of +0.1%, low drift of +1 uV/oC (low-level input
modules), and feature two high-level analog outputs that are
compatible with most process instrumentation. The isolated
input modules also provide +1500 V peak isolation.

The choice of a specific 3B module depends upon the type of
input signal. Input modules are available to accept millivolt, volt,
process current, thermocouple, RTD, AC and DC strain gage,
frequency and LVDT inputs. The voltage output of each module
is available from the system I/O connector while the current
output is available on the output screw terminals.




GENERAL DESCRIPTION
The 3B32 is a single-channel signal conditioning module that
interfaces, amplifies and filters a process-current input and
provides simultaneous precision output voltage and current.
Process-current input signals are measured by reading the
voltage across an external precision 100Ω resistor (supplied).
Model 3B32 performs complete signal conditioning, including
isolating (+1500V peak input-to-output and power) and
protecting their computer side outputs from damage and loss of
signal integrity, and shielding their inputs from damage from
field-side over-voltage faults up to 220V rms. The current
output withstands 130V rms without damage and interfaces
user equipment through screw terminals located on the 3B
Series backplane. Each plug-in, mix-and-match, hot-swappable
module is easily field calibrated via front-panel zero and span
adjustments for both voltage and current outputs.

3B Series Custom-Ranging Program – Externallyprogrammable
Model 3B32-00, enables the user to configure a
special input range by using the optional plug-on AC1310
ranging card, which houses user-supplied resistors to determine
zero and span. To facilitate selecting resistors, a Windows
program, 3B-CUSTOM, calculates resistor values based on the
user-desired input/output ranges.

A chopper-stabilized low-drift (+1uV/oC) input amplifier
assures long-term stability. At the amplifier input, a stable,
zero-scale input voltage is subtracted from the input signal to
set the zero-scale value. Zero suppression can exceed 100% of
the input range. This is ideal for expanded-scale applications
requiring high-resolution measurement of a selected portion of
an input signal. For user convenience, the zero and span can be
factory configured to meet custom range needs (Model 3B32-
CUSTOM) or can be externally programmed (Model 3B32-00)
via user supplied resistors inserted in the optional AC1310 plugon
ranging card. Internal low-pass filtering with a 3Hz cutoff (-
3dB) two-pole Butterworth filter enhances both 60 dB normalmode
and 160 dB common-mode rejection at 50/60 Hz,
enabling accurate measurement of small signals in high
electrical noise.

Signal isolation is accomplished by transformer coupling with a
proprietary modulation technique for linear, stable and reliable
performance. The differential input circuit on the field side is
fully floating, eliminating the need for any input grounding. A
demodulator on the computer side of the signal transformer
recovers the original signal, which is then filtered and buffered
and drives a voltage-to-current converter to provide the current
output.

3B46 Isolated Frequency Input Module


FEATURES
Interfaces, isolates, & filters frequency inputs.
The 3B45 accepts full-scale inputs from 25 to 1100 Hz
The 3B46 accepts full-scale inputs from 520 Hz to 25 kHz.
Modules provide simultaneous precision voltage and
current outputs.
Modules circuitry can withstand 130v rms at the input screwterminals.
All 3B45 & 3B46 series modules are mix-and-match and Hot
Swappable

APPLICATIONS
Industrial signal conditioning
Industrial signal isolation
Industrial signal filtering



PRODUCT OVERVIEW
The 3B Series of Signal Conditioning I/o Subsystems provide a
low-cost, versatile method of transferring analog transducer
signals to a data acquisition, monitoring or control system
without the inherent noise, non-linearity, drift and extraneous
voltages. The modules are designed to directly accept analog
signals from Thermocouples, RTD’s, AC and DC Strain Gages,
Torque Transducers, Frequency Transducers, LVDTs, millivolt
or process current signals. The modules amplify, isolate,
linearize and convert the transducer output signals to
standardized analog inputs for high-level analog I/O
subsystems. The 3B Series Subsystem consists of a 10” relay
rack with universal mounting backplane and a family of plug-in
(up to 16 per rack) input and output signal conditioning
modules.


Eight and four channel backplanes are also available. Each
backplane incorporates screw terminals for sensor inputs and
current outputs and a 26-pin connector for high-level singleended
voltage outputs to the user’s equipment.


The input modules feature complete signal conditioning
circuitry optimized for specific sensors or analog signals and
provide two simultaneous high-level analog outputs: 0 to +10V
(or +10V) and 4-20 mA (or 0-20 mA).

Output modules accept 0 to +10V (or +10V) single-ended
signals and provide an isolated 4-20 mA (or 0-20 mA) process
signal. All modules feature a universal pin-out and may be
readily hot-swapped under full power and interchanged without
disrupting field wiring.


The Analog Devices 3B Series Signal Conditioning Subsystem is
designed to easily handle signal conditioning problems in
measurement and control applications. Some typical uses are in
microcomputer-based data acquisition systems, programmable
controllers, analog recorders, dedicated control systems, and any
other applications where monitoring of temperature, pressure,
flow and analog signals are required. Since each input module
features two simultaneous outputs, the voltage output can be
used to provide an input to a microprocessor-based data
acquisition or control system while the current output can be
used for analog transmission, operator interface, or an analog
backup system.


Each input module is a single-channel signal conditioner which
plugs into a socket on the backplane and accepts its signal from
the input screw terminals. All input modules provide input
protection, amplification and filtering of the input signal,
accuracy of +0.1%, low drift of +1 uV/ oC (low-level input
modules), and feature two high-level analog outputs that are
compatible with most process instrumentation. The isolated
input modules also provide +1500 V peak isolation.


The choice of a specific 3B module depends upon the type of
input signal. Input modules are available to accept millivolt, volt,
process current, thermocouple, RTD, AC and DC strain gage,
frequency and LVDT inputs. The voltage output of each module
is available from the system I/O connector while the current
output is available on the output screw terminals.




GENERAL DESCRIPTION
The 3B45 and 3B46 are single-channel isolated frequency input
moduels which produce simultaneous precision voltage and
current outputs proportional to input frequency. Model 3B45
accepts full-scale inputs ranging from 25 Hz to 1100 Hz, while
Model 3B46 accepts full-scale input from 520 Hz to 25kHz.
Both models enable the user to set the threshold to either 0 V
(for zero crossing signals) or +1.6 V (for positive level signals),
and the hysteresis to either 0 or +4 V. Hysteresis can be set for
any value within this range using the supplied AC1310 ranging
card. The 3B45 and 3B46 shield their computer side outputs
from damage and loss of signal integrity from field-side overvoltage
faults, withstanding up to 220 V rms at their input
terminals. The current output withstands 130 V rms without
damage and interfaces user equipment through screw terminal
connections. In addition, all 3B45 and 3B46 models are plug-in,
mix-and-match and hot-swappable, so each can be inserted or
removed from any socket in the same backplane without
disrupting system power.

3B Series Custom-Ranging Program – Externallyprogrammable
Model 3B45-00 and 3B46-00 enable the user to
configure a special input range by using the supplied plug-on
AC1310 ranging card, which houses user-supplied resistors to
determine hysteresis, zero and span. To facilitate selecting
resistors, a Windows program, 3B-CUSTOM, calculates resistor
values based on the user-desired input/output ranges.

The 3B45 and 3B46 compare the input signal to the userselected
threshold (Vt) and hysteresis (Vh). Signals of virtually
any wave shape that exceed the combined threshold and
hysteresis levels (Vt + Vh) will trigger a comparator at a rate
determined by the input frequency. The comparator output is
then transmitted across a proprietary transformer-coupled
isolation barrier. A demodulator on the computer side of the
signal transformer recovers the original signal, which is then
filtered and buffered to provide a low-noise, low-impedance
output voltage; this output also drives a voltage-to-current (V/I)
converter to provide a simultaneous current output for
interfacing versatility.

Setting the threshold value is a simple matter of externally
wiring to the 3B Series backplane screw terminals. The
threshold for measuring a zero-crossing voltage waveform (such
as sine waves) can be set to 0 volts by connecting terminal 3 to
terminal 4. The threshold for a positive level signal (such as a
TTL or pulse train waveform) can be set at +1.6 V by
connecting terminals 1 and 2. Hysteresis for both input signal
types is set at 0 V, but can be changed to +4V by removing the
jumper that is installed on the AC1310 ranging card shipped
with each unit.

13 July 2009

Programming Cable Motorola GM338 GM398

Brand new aftermarket RIBLESS (RIB box not required) programming cable
for Motorola mobile radios, including:
- Radius, SM10, SM50, SM120, Sportbase Mobiles
- GTX Mobile, LCS2000, LTS2000
- Maratrac, MCX600, MCX1000, MCX760, MCX780, PRO3100, PRO5100, PRO7100
- Maxtrac, 50, 100, 300, 300+, 820, 840, M860, M1225
- Desktrac, GM140, GM160, GM300, GM328, GM338, GM339, GM399, GM340,
- GM360, GM380, GM398, GM640, GM660, GM950,GM950E, GM950I, GM1280
- CDM750, CDM1250, CDM1550, CDM1550LS, CDM1550LS+, CM200, CM300, PM400
- GR300, GR400, GR500, GR1225
- M10, M100, M120, M130, M200, M206, M208, M214, M216, M40

12 July 2009

Programming Cable Motorola GM3188 GM3688

Cable GM3188 GM3688

Programming Cable Motorola Radius GM300 M120 M130

Cable GM300

Programming Cable Motorola GP3188 GP3688

Cable GP3188

Programming Cable Motorola GP308 GP88S

Cable GP308

Programming Cable Motorola GP2000 GP2000S

Cable GP2000

Programming Cable Motorola MTX960 MTX900

Cable MTX960 MTX900

Programming Cable for Motorola GP328 GP338



Compatible Models:
- GP338, GP328, GP339, GP329
- GP380, GP360, GP340, GP320, GP1280, GP140, GP318, GP640, GP650, GP680
- HT1250, HT1250LS, HT1550, HT1550XLS, HT750
- MTX8250, MTX8250LS, MTX850, MTX850LS, MTX9250, MTX950
- PRO5150, PRO5350, PRO5450, PRO5550, PRO5750, PRO7150, PRO7350, PRO7450, PRO7550, PRO7750, PRO9150
- PTX700, PTX760, PTX780

Programming Cable Motorola PTX760 PTX700

Cable PTX760 PTX700

Programming Cable Motorola GP328Plus GP338Plus

Cable GP328Plus GP338Plus

Programming Cable Motorola GP328 GP338

Cable Motorola GP328 GP338

MHW820 RF Modul 20Watt 800MHz

MHW820 20Watt 800MHz

MHW2820-1 RF Modul 20Watt 800MHz

MHW2820-1 RF Modul 20Watt 800MHz

800 MHz Antenna for Motorola AT2500 Model I II III



Key Features & Specs:
--------------------------
- Connector: Motorola SF type connector
- Style: Soft Whip
- Band: 800 MHz
- Frequency: 802-896 MHz
- Color: Black
- Length: approx 7 "

800 MHz Antenna for Motorola MTX960



Key Features & Specs:
--------------------------
- Connector: Motorola SF type connector
- Style: Soft Whip
- Band: 800 MHz
- Frequency: 802-896 MHz
- Color: Black
- Length: approx 7 "

PIC18F4553-I/P Microchip MCU

40-Pin High-Performance, Enhanced Flash, USB
Microcontrollers with 12-Bit A/D and nanoWatt Technology.
---------------------------------------------
Universal Serial Bus Features:
• USB V2.0 Compliant
• Low Speed (1.5 Mb/s) and Full Speed (12Mb/s)
• Supports Control, Interrupt, Isochronous and Bulk Transfers
• Supports up to 32 Endpoints (16 bidirectional)
• 1-Kbyte Dual Access RAM for USB
• On-Chip USB Transceiver with On-Chip Voltage Regulator
• Interface for Off-Chip USB Transceiver
• Streaming Parallel Port (SPP) for USB Streaming Transfers (40/44-pin devices only)

Power-Managed Modes:
• Run: CPU On, Peripherals On
• Idle: CPU Off, Peripherals On
• Sleep: CPU Off, Peripherals Off
• Idle mode Currents Down to 5.8 ¼A Typical
• Sleep mode Currents Down to 0.1 ¼A Typical
• Timer1 Oscillator: 1.1 ¼A Typical, 32 kHz, 2V
• Watchdog Timer: 2.1 ¼A Typical
• Two-Speed Oscillator Start-up

Special Microcontroller Features:
• C Compiler Optimized Architecture with Optional Extended Instruction Set
• 100,000 Erase/Write Cycle Enhanced Flash Program Memory Typical
• 1,000,000 Erase/Write Cycle Data EEPROM Memory Typical
• Flash/Data EEPROM Retention: > 40 Years
• Self-Programmable under Software Control
• Priority Levels for Interrupts
• 8 x 8 Single-Cycle Hardware Multiplier
• Extended Watchdog Timer (WDT):
- Programmable period from 41 ms to 131s
• Programmable Code Protection
• Single-Supply 5V In-Circuit Serial Programming™ (ICSP™) via Two Pins
• In-Circuit Debug (ICD) via Two Pins
• Optional Dedicated ICD/ICSP Port (44-pin TQFP package only)
• Wide Operating Voltage Range (2.0V to 5.5V)

Flexible Oscillator Structure:
• Four Crystal modes, Including High-Precision PLL for USB
• Two External Clock modes, up to 48 MHz
• Internal Oscillator Block:
- 8 user-selectable frequencies, from 31 kHz to 8 MHz
- User-tunable to compensate for frequency drift
• Secondary Oscillator using Timer1 @ 32 kHz
• Dual Oscillator Options allow Microcontroller and USB module to Run at Different Clock Speeds
• Fail-Safe Clock Monitor:
- Allows for safe shutdown if any clock stops

Peripheral Highlights:
• High-Current Sink/Source: 25 mA/25 mA
• Three External Interrupts
• Four Timer modules (Timer0 to Timer3)
• Up to 2 Capture/Compare/PWM (CCP) modules:
- Capture is 16-bit, max. resolution 5.2 ns (TCY/16)
- Compare is 16-bit, max. resolution 83.3 ns (TCY)
- PWM output: PWM resolution is 1 to 10-bits
• Enhanced Capture/Compare/PWM (ECCP) module:
- Multiple output modes
- Selectable polarity
- Programmable dead time
- Auto-shutdown and auto-restart
• Enhanced USART module:
- LIN bus support
• Master Synchronous Serial Port (MSSP) module supporting 3-wire SPI (all 4 modes) and I2C™ Master and Slave modes
• 12-Bit, up to 13-Channel Analog-to-Digital Converter module (A/D) with Programmable Acquisition Time
• Dual Analog Comparators with Input Multiplexing

TL074 Low Noise, JFET Input Operational Amplifiers

These low noise JFET input operational amplifiers combine two state of the art analog technologies on a single monolithic integrated circuit.

Each internally compensated operational amplifier has well matched high voltage JFET input device for low input offset voltage.

The BIFET technology provides wide bandwidths and fast slew rates with low input bias currents, input offset currents, and supply currents.

Moreover, the devices exhibit low noise and low harmonic distortion, making them ideal for use in high fidelity audio amplifier applications.

Features:
-----------
-Low Input Noise Voltage: 18 nV/Hz
-Low Harmonic Distortion: 0.01%
-Low Input Bias and Offset Currents
-High Input Impedance: 10 TOhm.
-High Slew Rate: 13 V/uS
-Wide Gain Bandwidth: 4.0 MHz
-Low Supply Current: 1.4 mA per Amp

BUX48A High Voltage Fast-Switching NPN Power Transistors


Description:
---------------
The BUX48 and BUX48A are multi epitaxial mesa NPN transistors ounted in TO-3 metal can.

They are intended for switching and industrial applications for single and three-phase mains.




Features:
-----------
- NPN transistors
- High voltage capability
- High current capability
- Fast switching speed

Applications:
--------------
- Switching mode power supplies
- Flyback and forward single transistor low power converters.

TL072 Low Noise, JFET Input Operational Amplifiers

These low noise JFET input operational amplifiers combine two state of the art analog technologies on a single monolithic integrated circuit.

Each internally compensated operational amplifier has well matched high voltage JFET input device for low input offset voltage.

The BIFET technology provides wide bandwidths and fast slew rates with low input bias currents, input offset currents, and supply currents.

Moreover, the devices exhibit low noise and low harmonic distortion, making them ideal for use in high fidelity audio amplifier applications.

Features:
-----------
-Low Input Noise Voltage: 18 nV/Hz
-Low Harmonic Distortion: 0.01%
-Low Input Bias and Offset Currents
-High Input Impedance: 10 TOhm.
-High Slew Rate: 13 V/uS
-Wide Gain Bandwidth: 4.0 MHz
-Low Supply Current: 1.4 mA per Amp

PIC18F4525-I/P Microchip MCU

40-Pin High-Performance, Enhanced Flash, USB Microcontrollers with 12-Bit A/D and nanoWatt Technology.
---------------------------------------

Universal Serial Bus Features:
• USB V2.0 Compliant
• Low Speed (1.5 Mb/s) and Full Speed (12Mb/s)
• Supports Control, Interrupt, Isochronous and Bulk Transfers
• Supports up to 32 Endpoints (16 bidirectional)
• 1-Kbyte Dual Access RAM for USB
• On-Chip USB Transceiver with On-Chip Voltage Regulator
• Interface for Off-Chip USB Transceiver
• Streaming Parallel Port (SPP) for USB Streaming Transfers (40/44-pin devices only)

Power-Managed Modes:
• Run: CPU On, Peripherals On
• Idle: CPU Off, Peripherals On
• Sleep: CPU Off, Peripherals Off
• Idle mode Currents Down to 5.8 ¼A Typical
• Sleep mode Currents Down to 0.1 ¼A Typical
• Timer1 Oscillator: 1.1 ¼A Typical, 32 kHz, 2V
• Watchdog Timer: 2.1 ¼A Typical
• Two-Speed Oscillator Start-up

Special Microcontroller Features:
• C Compiler Optimized Architecture with Optional Extended Instruction Set
• 100,000 Erase/Write Cycle Enhanced Flash Program Memory Typical
• 1,000,000 Erase/Write Cycle Data EEPROM Memory Typical
• Flash/Data EEPROM Retention: > 40 Years
• Self-Programmable under Software Control
• Priority Levels for Interrupts
• 8 x 8 Single-Cycle Hardware Multiplier
• Extended Watchdog Timer (WDT):
- Programmable period from 41 ms to 131s
• Programmable Code Protection
• Single-Supply 5V In-Circuit Serial Programming™ (ICSP™) via Two Pins
• In-Circuit Debug (ICD) via Two Pins
• Optional Dedicated ICD/ICSP Port (44-pin TQFP package only)
• Wide Operating Voltage Range (2.0V to 5.5V)

Flexible Oscillator Structure:
• Four Crystal modes, Including High-Precision PLL for USB
• Two External Clock modes, up to 48 MHz
• Internal Oscillator Block:
- 8 user-selectable frequencies, from 31 kHz to 8 MHz
- User-tunable to compensate for frequency drift
• Secondary Oscillator using Timer1 @ 32 kHz
• Dual Oscillator Options allow Microcontroller and USB module to Run at Different Clock Speeds
• Fail-Safe Clock Monitor:
- Allows for safe shutdown if any clock stops

Peripheral Highlights:
• High-Current Sink/Source: 25 mA/25 mA
• Three External Interrupts
• Four Timer modules (Timer0 to Timer3)
• Up to 2 Capture/Compare/PWM (CCP) modules:
- Capture is 16-bit, max. resolution 5.2 ns (TCY/16)
- Compare is 16-bit, max. resolution 83.3 ns (TCY)
- PWM output: PWM resolution is 1 to 10-bits
• Enhanced Capture/Compare/PWM (ECCP) module:
- Multiple output modes
- Selectable polarity
- Programmable dead time
- Auto-shutdown and auto-restart
• Enhanced USART module:
- LIN bus support
• Master Synchronous Serial Port (MSSP) module supporting 3-wire SPI (all 4 modes) and I2C™ Master and Slave modes
• 12-Bit, up to 13-Channel Analog-to-Digital Converter module (A/D) with Programmable Acquisition Time
• Dual Analog Comparators with Input Multiplexing

TDA1519 Audio Amplifier 22Watt

TDA1519 TDA1519A TDA1519C

M1570 RF Transistor



M1535 RF Transistor 35Watt

M1535

M1507 RF Transistor 7.5Watt

M1507

M1550 RF Transistor 50Watt

M1550

2SK3075 RF Transistor 7.5Watt

Feature:
􀁺 RF Power MOSFET for VHF and UHF band Power Amplifier
􀁺 Output Power : PO ≥ 7.5W
􀁺 Power Gain : GP ≥ 11.7dB
􀁺 Drain Efficiency : ηD ≥ 50%

MAXIMUM RATINGS (Ta = 25°C)


ELECTRICAL CHARACTERISTICS (Ta = 25°C)


RF OUTPUT POWER TEST FIXTURE




Marking


Package size

2SK3476 RF Transistor 7.5Watt

Feature:
• VHF and UHF band Amplifier Applications
• Output power: PO = 7.0 W (min)
• Gain: GP = 11.4dB (min)
• Drain efficiency: ηD = 60% (min)

Maximum Ratings (Ta = 25°C)


Electrical Characteristics (Ta = 25°C)


Output Power Test Fixture





Marking

2SK3475 RF Transistor 0.6Watt

Feature:
• VHF and UHF band Amplifier Applications
• Output power: PO = 630 mW (min)
• Gain: GP = 14.9dB (min)
• Drain efficiency: ηD = 45% (min)

Maximum Ratings (Ta = 25°C)


Electrical Characteristics (Ta = 25°C)


Output Power Test Fixture




Marking


Package size
